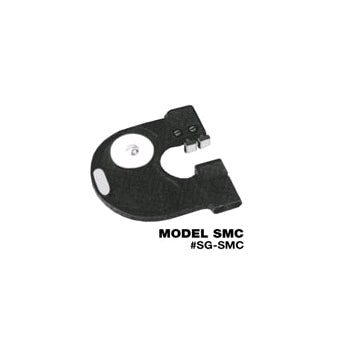

Plain Snap Gages - Model SMC

Plain Snap Gages - Model SMC

Plain Snap Gages - Model SMC

Write a review

  • Snap Gage provide quick and accurate production inspection
  • Manufactured per ANSI/ANSI B47.1 -“ 1988
  • Available in three styles
  • Marking discs are supplied with all gages
  • English and metric measurements
  • Sizes from 0" to 11 5/8"
  • Free NIST certificate of accuracy

Part#Plain Snap Gages Model SMC
blockTable metric
paritalName tables
Email Express Quote

Snap gages are designed for quick inspection of diameters of cylinders and shafts in machining processes. Snap gages are a quick way to check the outside diameter of a shaft while still in a machine or an OD that is difficult to locate/reach with ring gages. Available in three styles. Type -œA- with pin type anvils, Type -œC- with flat square anvils (most common), and Type -œU- with knife edge anvils for checking grooves/undercuts. Gaging surfaces are manufactured of hardened, ground and lapped tool steel.

All AGD snap gages are manufactured per ANSI/ANSI B47.1 -“ 1988. Anvil parallelism is superior to military specifications. Marking discs are supplied with all gages. Snap gages are for both English and metric measurements. They can be -œSet- several times as they wear during use and can be purchased -œSet & Sealed -œfrom the factory or set and sealed in your facility. Sizes range from 0" to 11 5/8" and are traceable to NIST. (National Institute of Standards and Technology)
