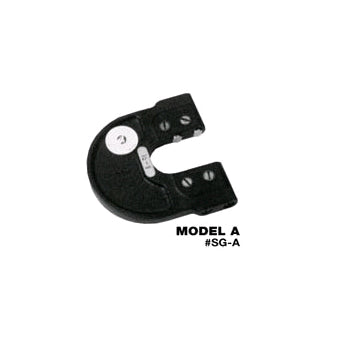

Plain Snap Gages - 3 3/4-4 1/2 - Inch - 8 - Set & Sealed

Plain Snap Gages - 3 3/4-4 1/2 - Inch - 8 - Set & Sealed
Regular price
$399.00
$349.00
Sale
Part# | SSGSASI-8 |
size | 3-3/4-4-1/2 |
Frame# | 8 |
Size Range | type |
Measure | type |
Measure | Inch |
typeGage | Set-&-Sealed |
Snap gages are designed for quick inspection of diameters of cylinders and shafts in machining processes. Snap gages are a quick way to check the outside diameter of a shaft while still in a machine or an OD that is difficult to locate/reach with ring gages.
Snap gages are available in three styles. Type "A" with pin type anvils, Type "C" with flat square anvils (most common), and Type "U" with knife edge anvils for checking grooves/undercuts. Gaging surfaces are manufactured of hardened, ground and lapped tool steel. All AGD snap gages are manufactured per ANSI/ANSI B47.1 - 1988. Anvil parallelism is superior to military specifications. Marking discs are supplied with all gages.
Snap gages are for both English and metric measurements. Snap gages can be "Set" several times as they wear during use. They can be purchased "Set & Sealed" from the factory or set and sealed in your facility. WESTport Snap Gages cover a range of sizes from 0" to 11 5/8". Set and sealed snap gages are traceable to NIST.
- Provides quick and accurate production inspection
- Manufactured per ANSI/ANSI B47.1 - 1988
- Available in three styles
- Marking discs are supplied with all gages
- English and metric measurements
- Sizes from 0" to 11 5/8"
- Free NIST certificate of accuracy
part | SSGSASI-8 |
size | 3-3/4-4-1/2 |
Frame# | 8 |
Size Range | type |
Measure | type |
Measure | Inch |
typeGage | Set-&-Sealed |
