Pin Brinell Impact Test Kit

Pin Brinell Impact Test Kit

Pin Brinell Impact Test Kit

Regular price $1,080.00 $1,048.00 Sale

Pin Brinell Impact Test Kit

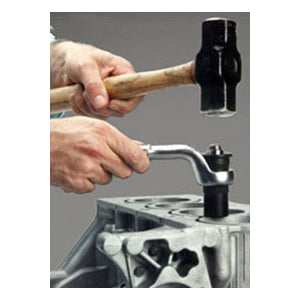

The Pin Brinell CPIT Impact Tester uses a calibrated shear pin to control the amount of load applied. After the impression is made the width is measured and the value converted to an equivalent Brinell number. *Consistent loading regardless of operator. *Test without clamping - access is only needed to one side of a test specimen. *Tests in 100 - 730 equivalent Brinell range *Faster and easier than the impact bar method. Complete with indenter holder, impact cylinder, regular indenter (Brinell 100 - 450), handle for impact cylinder, 7X Brinell scope, pin ejector, 250 calibrated shear pins with chart, hardness conversion chart and custom fitted carry case. (Test block not included.)

Features:
• Less operator influence on test results- Onlyone optical measurement needs to be made. Consistent load regardless ofoperator technique. Can be as accurate as bench brinell testing • Easier to use- Each pin works in the entirehardness range HB100-730. Easier to test in confined areas. Only oneimpression needs to be measured. The Impact model is smaller and easier touse on large parts. The Static C-clamp model is easier to use on small orthin parts
• Test impressions can be re-measured without retesting
• Faster operation- One impression - one measurement.No additional computation required
• Portable and inexpensive to use- So portablethe Impact model fits in your pocket. Costs much less to purchase. Loweroperation cost
• Accuracy equivalent to bench model Brinell testers
• Impact model requires no clamping
• Fewer moving parts
• Small and lightweight
• No messy oil
• No need for recalibration

partWCPIT
