Cylindrical Reversible Plug Gages - Chrome

  • Reversible plug gages are used to check a drilled hole
  • Reversible gage members provides two gages for the price of one
  • Available with GO and NOGO members
  • Class XXX, XX, X, Y and Z
  • Gages are 2.0” in length
  • Precision hand lapped to a 3 micro inch finish to provide superior accuracy and optimum finish
  • Manufactured to the high end of the ANSI specifications to provide maximum wearability
  • Final inspection of gages is completed in an environmentally controlled ISO 17025 laboratory
  • Reversible plug gages are available in steel, chrome and carbide
  • Free NIST certificate of accuracy
Please select a measure:
  • Inch
  • Metric
SIZE RANGE CLASS MEMBER ITEM# PRICE SALE PRICE
.0301-.0750 XX GO/NOGO CRCI-2XX
Regular price

$56.00

$50.00 Sale
$50.00
.0301-.0750 XX DOUBLE-END CRCIDE-2XX
Regular price

$124.00

$113.00 Sale
$113.00
.0301-.0750 X GO/NOGO CRCI-2X
Regular price

$33.00

$29.00 Sale
$29.00
.0301-.0750 X DOUBLE-END CRCIDE-2X
Regular price

$78.00

$71.00 Sale
$71.00
.0301-.0750 Y GO/NOGO CRCI-2Y
Regular price

$28.00

$26.00 Sale
$26.00
.0301-.0750 Y DOUBLE-END CRCIDE-2Y
Regular price

$70.00

$64.00 Sale
$64.00
.0301-.0750 Z GO/NOGO CRCI-2Z
Regular price

$25.00

$23.00 Sale
$23.00
.0301-.0750 Z DOUBLE-END CRCIDE-2Z
Regular price

$63.00

$58.00 Sale
$58.00
.0751-.1800 XX GO/NOGO CRCI-3XX
Regular price

$59.00

$53.00 Sale
$53.00
.0751-.1800 XX DOUBLE-END CRCIDE-3XX
Regular price

$131.00

$119.00 Sale
$119.00
.0751-.1800 X GO/NOGO CRCI-3X
Regular price

$38.00

$34.00 Sale
$34.00
.0751-.1800 X DOUBLE-END CRCIDE-3X
Regular price

$89.00

$81.00 Sale
$81.00
.0751-.1800 Y GO/NOGO CRCI-3Y
Regular price

$35.00

$31.00 Sale
$31.00
.0751-.1800 Y DOUBLE-END CRCIDE-3Y
Regular price

$82.00

$75.00 Sale
$75.00
.0751-.1800 Z GO/NOGO CRCI-3Z
Regular price

$28.00

$26.00 Sale
$26.00
.0751-.1800 Z DOUBLE-END CRCIDE-3Z
Regular price

$70.00

$64.00 Sale
$64.00
.1801-.2810 XX GO/NOGO CRCI-4XX
Regular price

$60.00

$54.00 Sale
$54.00
.1801-.2810 XX DOUBLE-END CRCIDE-4XX
Regular price

$134.00

$122.00 Sale
$122.00
.1801-.2810 X GO/NOGO CRCI-4X
Regular price

$38.00

$34.00 Sale
$34.00
.1801-.2810 X DOUBLE-END CRCIDE-4X
Regular price

$90.00

$82.00 Sale
$82.00
.1801-.2810 Y GO/NOGO CRCI-4Y
Regular price

$35.00

$31.00 Sale
$31.00
.1801-.2810 Y DOUBLE-END CRCIDE-4Y
Regular price

$83.00

$76.00 Sale
$76.00
.1801-.2810 Z GO/NOGO CRCI-4Z
Regular price

$32.00

$29.00 Sale
$29.00
.1801-.2810 Z DOUBLE-END CRCIDE-4Z
Regular price

$77.00

$70.00 Sale
$70.00
.2811-.4060 XX GO/NOGO CRCI-5XX
Regular price

$66.00

$60.00 Sale
$60.00
.2810-.4060 XX DOUBLE-END CRCIDE-5XX
Regular price

$147.00

$134.00 Sale
$134.00
.2811-.4060 X GO/NOGO CRCI-5X
Regular price

$46.00

$42.00 Sale
$42.00
.2810-.4060 X DOUBLE-END CRCIDE-5X
Regular price

$107.00

$98.00 Sale
$98.00
.2811-.4060 Y GO/NOGO CRCI-5Y
Regular price

$40.00

$36.00 Sale
$36.00
.2810-.4060 Y DOUBLE-END CRCIDE-5Y
Regular price

$95.00

$86.00 Sale
$86.00
.2811-.4060 Z GO/NOGO CRCI-5Z
Regular price

$32.00

$29.00 Sale
$29.00
.2810-.4060 Z DOUBLE-END CRCIDE-5Z
Regular price

$78.00

$71.00 Sale
$71.00
.4061-.5100 XX GO/NOGO CRCI-6XX
Regular price

$69.00

$63.00 Sale
$63.00
.4060-.5100 XX DOUBLE-END CRCIDE-6XX
Regular price

$154.00

$140.00 Sale
$140.00
.4061-.5100 X GO/NOGO CRCI-6X
Regular price

$48.00

$44.00 Sale
$44.00
.4060-.5100 X DOUBLE-END CRCIDE-6X
Regular price

$112.00

$102.00 Sale
$102.00
.4061-.5100 Y GO/NOGO CRCI-6Y
Regular price

$44.00

$40.00 Sale
$40.00
.4060-.5100 Y DOUBLE-END CRCIDE-6Y
Regular price

$103.00

$94.00 Sale
$94.00
.4061-.5100 Z GO/NOGO CRCI-6Z
Regular price

$34.00

$30.00 Sale
$30.00
.4060-.5100 Z DOUBLE-END CRCIDE-6Z
Regular price

$82.00

$75.00 Sale
$75.00
.5101-.635 XX GO/NOGO CRCI-7XX
Regular price

$76.00

$68.00 Sale
$68.00
.511-.635 XX DOUBLE-END CRCIDE-7XX
Regular price

$167.00

$152.00 Sale
$152.00
.5101-.635 X GO/NOGO CRCI-7X
Regular price

$49.00

$45.00 Sale
$45.00
.511-.635 X DOUBLE-END CRCIDE-7X
Regular price

$115.00

$105.00 Sale
$105.00
.5101-.635 Y GO/NOGO CRCI-7Y
Regular price

$48.00

$44.00 Sale
$44.00
.511-.635 Y DOUBLE-END CRCIDE-7Y
Regular price

$113.00

$103.00 Sale
$103.00
.5101-.635 Z GO/NOGO CRCI-7Z
Regular price

$35.00

$31.00 Sale
$31.00
.511-.635 Z DOUBLE-END CRCIDE-7Z
Regular price

$85.00

$78.00 Sale
$78.00
.6351-.7600 XX GO/NOGO CRCI-8XX
Regular price

$79.00

$71.00 Sale
$71.00
.635-.7600 XX DOUBLE-END CRCIDE-8XX
Regular price

$174.00

$158.00 Sale
$158.00
.6351-.7600 X GO/NOGO CRCI-8X
Regular price

$54.00

$48.00 Sale
$48.00
.635-.7600 X DOUBLE-END CRCIDE-8X
Regular price

$123.00

$112.00 Sale
$112.00
.6351-.7600 Y GO/NOGO CRCI-8Y
Regular price

$49.00

$45.00 Sale
$45.00
.635-.7600 Y DOUBLE-END CRCIDE-8Y
Regular price

$115.00

$105.00 Sale
$105.00
.6351-.7600 Z GO/NOGO CRCI-8Z
Regular price

$38.00

$34.00 Sale
$34.00
.635-.7600 Z DOUBLE-END CRCIDE-8Z
Regular price

$92.00

$84.00 Sale
$84.00
.7601-1.0100 XX GO/NOGO CRCI-9XX
Regular price

$128.00

$116.00 Sale
$116.00
.7600-1.0100 XX DOUBLE-END CRCIDE-9XX
Regular price

$280.00

$255.00 Sale
$255.00
.7601-1.0100 X GO/NOGO CRCI-9X
Regular price

$83.00

$75.00 Sale
$75.00
.7600-1.0100 X DOUBLE-END CRCIDE-9X
Regular price

$190.00

$173.00 Sale
$173.00
.7600-1.0100 Y GO/NOGO CRCI-9Y
Regular price

$77.00

$69.00 Sale
$69.00
.7600-1.0100 Y DOUBLE-END CRCIDE-9Y
Regular price

$177.00

$162.00 Sale
$162.00
.7601-1.0100 Z GO/NOGO CRCI-9Z
Regular price

$67.00

$61.00 Sale
$61.00
.7600-1.0100 Z DOUBLE-END CRCIDE-9Z
Regular price

$158.00

$144.00 Sale
$144.00

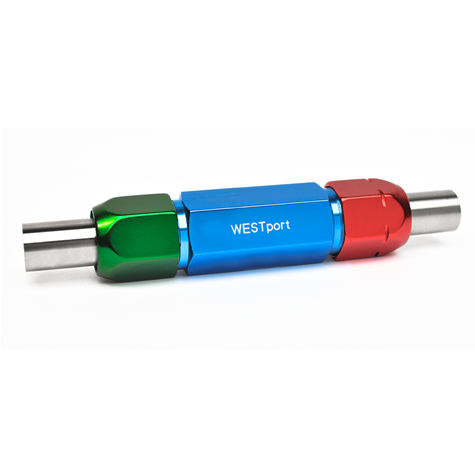

Reversible cylindrical plug gages, sometimes referred to as reversible plain plug gages are used to check a drilled hole. The reversible gage features that when one end becomes worn or damaged, the gage member can be reversed providing exceptional value, essentially two gage members for the price of one.

The diameters are ring lapped to size and hand polished providing for superior accuracy and ensuring maximum gage wearability. Available with GO and NOGO members in Class XXX, XX, X, Y and Z compliant to ANSI specifications. Aluminum gage bodies anodized green for GO and red for NO GO provide quick positive identification. The gagemaker’s tolerances will be applied plus on the GO member and minus on the NO GO member unless otherwise specified.

Available in steel, chrome and carbide. Steel gages are made of high quality 52100 tool steel hardened to Rockwell C60-64 and cold stabilized to minimum size and form variations providing exceptionally long life of the gage. Gages are 2.0” in length. Special length gages are available up to 6.0” length. All gages are ground lapped to a 5 micro inch surface finish or better. Cylindrical steel and chrome reversible plug gages are available from .015” – 1.0100”. Carbide plug gages are available from .040” - .761”.

Special features such as depth notches, air flats, pilots, radius, and chamfers are priced on request. WESTport Gage provides a Certificate of Accuracy, traceable to NIST (National Institute of Standards and Technology), free of charge with every gage.
