TOOL-A-THON SPECIAL - XT Mechanical Holemikes - 2 - 2.625 - Inch - Holemikes

TOOL-A-THON SPECIAL - XT Mechanical Holemikes - 2 - 2.625 - Inch - Holemikes

TOOL-A-THON SPECIAL - XT Mechanical Holemikes - 2 - 2.625 - Inch - Holemikes

$1,680.00 $1,461.00 Sale

XT Mechanical Holemikes - Individual
Part#52-255-318
size 2---2.625-
Size Rangegraduation
MeasureInch
Email Express Quote

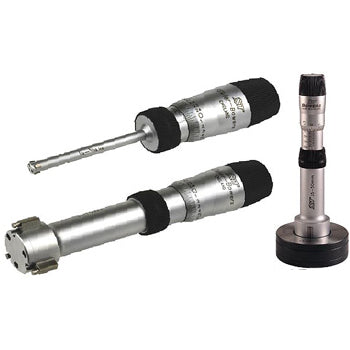

The Fowler/Bowers range of mechanical two and three point bore micrometers are now available as XT extended travel versions between .080"/2mm and 12"/300mm. This allows wide measurement range without the need to interchange anvils. Accuracy: .00015 Inch Gage\Measure Depth: .350 Inch Grads: .00025" Ring Included (If Applicable): .1000" Features:

  • Graduations 0.00025" (0.005mm)
  • 3-pt contact with tungsten carbide measuring anvils above .5" (12.5mm)
  • Blind bore measuring above .5" (12.5mm)
  • Ratchet stop for consistent measuring
  • Non-removeable anvils
  • Extensions available for deep measuring
  • Heads with special anvils available for threads, splines, slots, etc.
  • Setting rings included in all sets
  • Includes UKAS certificates for all Holemikes and setting rings
  • Every gage is individually serialized.
  • Special anvils available.

    • part52-255-318
    size 2---2.625-
    Size Rangegraduation
    MeasureInch
