Bowers Holemikes

Please select a measure:
  • Inch
  • Metric
PART # DESCRIPTION SIZE PRICE SALE PRICE
52-255-420 XT Mechanical Holemikes 80-100-
Regular price

$1,709.00

$1,538.00 Sale
$1,538.00
52-255-411 XT Mechanical Holemikes 8-10
Regular price

$696.00

$626.00 Sale
$626.00
52-255-324 XT Mechanical Holemikes 7-8
Regular price

$2,910.00

$2,474.00 Sale
$2,474.00
52-255-419 XT Mechanical Holemikes 65-80-
Regular price

$1,371.00

$1,234.00 Sale
$1,234.00
52-255-410 XT Mechanical Holemikes 6-8
Regular price

$750.00

$675.00 Sale
$675.00
52-255-323 XT Mechanical Holemikes 6-7
Regular price

$2,555.00

$2,172.00 Sale
$2,172.00
52-255-322 XT Mechanical Holemikes 5-6
Regular price

$1,998.00

$1,698.00 Sale
$1,698.00
52-255-321 XT Mechanical Holemikes 4-5
Regular price

$1,722.00

$1,464.00 Sale
$1,464.00
52-255-416 XT Mechanical Holemikes 25-35-
Regular price

$1,113.00

$1,002.00 Sale
$1,002.00
52-255-415 XT Mechanical Holemikes 20-25-
Regular price

$783.00

$705.00 Sale
$705.00
52-255-414 XT Mechanical Holemikes 16-20-
Regular price

$721.00

$649.00 Sale
$649.00
52-255-422 XT Mechanical Holemikes 125-150-
Regular price

$2,004.00

$1,804.00 Sale
$1,804.00
52-255-413 XT Mechanical Holemikes 12.5-16-
Regular price

$696.00

$626.00 Sale
$626.00
52-255-421 XT Mechanical Holemikes 100-125-
Regular price

$1,728.00

$1,555.00 Sale
$1,555.00
52-255-320 XT Mechanical Holemikes 3.250-4-
Regular price

$1,702.00

$1,226.00 Sale
$1,226.00
52-255-319 XT Mechanical Holemikes 2.625-3.250-
Regular price

$1,365.00

$983.00 Sale
$983.00
52-255-318 XT Mechanical Holemikes 2-2.625-
Regular price

$1,353.00

$974.00 Sale
$974.00
52-255-317 XT Mechanical Holemikes 1.375-2-
Regular price

$1,134.00

$816.00 Sale
$816.00
52-255-316 XT Mechanical Holemikes 1-1.375-
Regular price

$1,107.00

$797.00 Sale
$797.00
52-255-315 XT Mechanical Holemikes .750-1-
Regular price

$777.00

$560.00 Sale
$560.00
52-255-314 XT Mechanical Holemikes .625-.750-
Regular price

$708.00

$509.00 Sale
$509.00
52-255-313 XT Mechanical Holemikes .500-.625-
Regular price

$690.00

$497.00 Sale
$497.00
52-255-312 XT Mechanical Holemikes .375-.500-
Regular price

$690.00

$497.00 Sale
$497.00
52-255-311 XT Mechanical Holemikes .312-.375-
Regular price

$690.00

$497.00 Sale
$497.00
52-255-310 XT Mechanical Holemikes .250-.312-
Regular price

$745.00

$536.00 Sale
$536.00

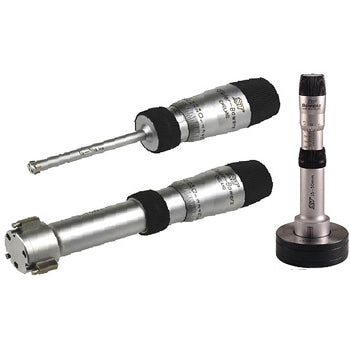

Fowler/Bowers Cylinder Bore Gages have been built on the Bowers' reputation for quality…a fast, accurate method for checking bores. Originally designed for engine rebore use, these bore gages have since been developed into a universal, wide range, two point internal measuring system suitable for many applications.

An improved mechanical system increases its strength and wear resistance. All contact points are tungsten carbide. Robust, easy to use and suitable for most environments and applications.

Set the gage with a setting ring or micrometer by rotating the dial face to zero. During measurement, the gage is inserted into the bore at an angle and then rocked slowly to enable a reading to be taken. A spring loaded centralizing foot ensures that the gage remains on center during measuring operation when the minimum reading gives the bore size.

The Fowler/Bowers range of mechanical two and three point bore micrometers are now available as XT extended travel versions between .080"/2mm and 12"/300mm. This allows wide measurement range without the need to interchange anvils.

  • Dial Reading: .0005"
  • Available in inch and metric, ranging from 1/2"—24" (12.5mm—600mm).
  • Choice of .0001", .0005", .002mm or .01mm graduations.
  • Fast, simple checking of bores for size, ovality, taper, etc.
  • Lightweight ABS gage shroud for extra strength and protection
  • Thermally insulated for extra stability.Tungsten carbide contact points
  • Specials available for measurement of deep bores.
  • Extensions up to 2 meters available on some models.
