Portable Hardness Tester
Phase II - PHT-3500

PHT-3500

Portable Hardness Tester
Phase II - PHT-3500

Write a review

Regular price $0.10 $0.10 Sale

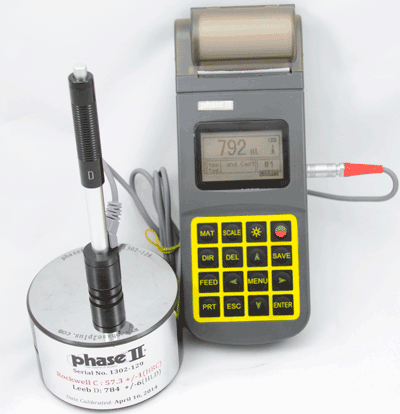

Portable Hardness Tester w/ Printer

Part No. PHT-3500

State of the art, digital tester is designed to test the hardness of large hard metal parts. Loaded with useful functions and a built in mini-printer the PHT-3500 is clearly the industry leader for fast accurate hardness testing with advanced USB output and thermal printing capabilities.

The PHT-3500 can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers, Shore, etc. Designed to test large hard parts: Example: Tool steel should be close to 1 thick of solid material


Call For Quote - We will beat any advertised price
Part#PHT-3500
Email Express Quote

Features:


    • Easy to use keypad operation
    • Auto identification of Impact Device
    • Large LCD display with back light
    • USB Ouput
    • Automatic conversions to: Brinell, Rockwell B & C, Vickers and Shore
    • Automatic mean value as well as Min & Max values
    • Battery Indicator
    • Memory capacity (100 groups)

STANDARD ACCESSORIES OPTIONAL ACCESSORIES


    • Base instrument
    • Impact device D
    • Calibrated test block
    • Custom carry case
    • Cleaning brush
    • Operation manual


    • Mini printer
    • Impact devices; DC, D+15, DL, G, C
    • Special support rings



Specifications


Accuracy +/- 0.5% (referred to L=800, Repeatability accuracy: +/- 4L units) L=Leeb, Measuring range: 200-960 HL
Materials steel & cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
Operating temperature 5-104 degrees Fahrenheit
Battery type AAA alkaline (4)
Dimensions 150 x 74 x 32mm
Weight 245 grams

Special Application Impact Devices: PHASE II MODEL NO. PHT-3500


IMPACT DEVICE D
Special feature: Universal standard device
Application: For the majority of hardness testing assignments
IMPACT DEVICE DC
Special feature: Extremely short impact device.
Application: Used for very confined spaces (holes, cylinders, or for internal measurements).
IMPACT DEVICE D+15
Special feature: Slim front section with coil set back.
Application: Hardness measurements in grooves and on recessed surfaces
Impact Device DL (not shown)
Special feature: Needle front section .109" diameter x 1.96" length
Application: Measurements in extremely confined spaces
IMPACT DEVICE C
Special feature: Reduced impact energy
Application: For testing case hardened or thin walled components
IMPACT DEVICE G
Special feature: Enlarged test tip.
Application: For use on solid heavy components such as; rough castings and forgings. Brinell only.
