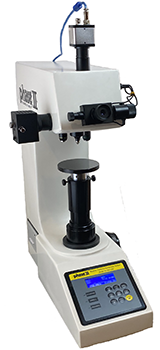

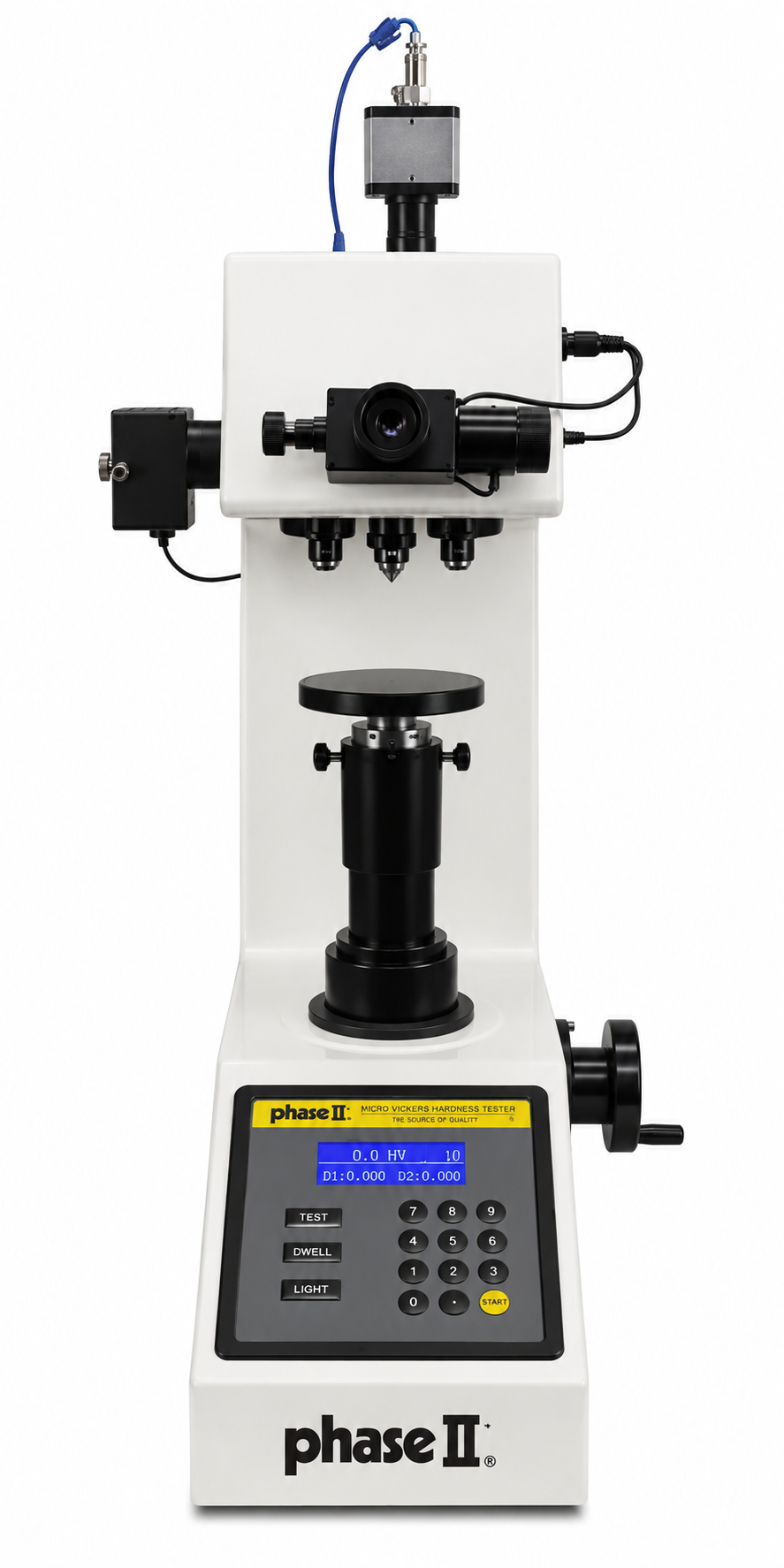

Macro Vickers Hardness Tester with Built-in Printer Phase II Model 900-398

Key Features

• Designed for Vickers (HV) and Knoop (HK) hardness testing
• Digital hardness testing system
• Test load range from 1 kgf to 50 kgf
• Precision load cell closed-loop control
• Automatic loading, dwell, and unloading
• Large LCD display
• Digital video camera included
• Camera adapter included
• USB connectivity
• Measurement software included
• Displays indentation diagonal lengths, hardness values, statistical data, and hardness conversions
• Manual turret
• Built-in mini printer
• RS-232 output
• ASTM E384 compliant
• 5-Year Warranty
• Free Lifetime Technical Support

Overview

The Phase II 900-398 Series Digital Macro Vickers Hardness Tester is a state-of-the-art hardness testing system designed for hardness analysis of metallic specimens in metallography laboratories and production environments. The system is engineered for accurate hardness testing of small precision parts, thin materials, case-hardened layers, and a wide variety of steel components. It performs both Vickers (HV) and Knoop (HK) hardness testing and covers a test load range from 1 kgf to 50 kgf.

The 900-398 utilizes a load cell closed-loop control system that allows the CPU to automatically control loading, dwell time, and unloading for exceptional accuracy and repeatability. The tester includes a precision video camera, camera adapter, USB connectivity, and measurement software for displaying indentation measurements, hardness values, statistics, and hardness conversions on both the integrated LCD display and a connected PC. The system conforms to ASTM E384 and is backed by a 5-year warranty and free lifetime technical support.

Applications

• Metallic specimens
• Small precision components
• Thin materials
• Case-hardened layers
• Steel components
• Metallography laboratories
• Production environments
• Research laboratories
• Quality control departments

Included Accessories

• Base Machine
• Digital Video Camera with Adapter
• Measurement Software
• Large Test Table
• "V" Shape Test Table
• 10× Digital Micro Lens
• Bullseye Level
• Adjustable Screw
• Vickers Hardness Test Block
• RS-232 Interface Cable
• Tool Kit

Measuring & Display Functions

The integrated LCD display and supplied software provide indentation diagonal measurements, hardness values, statistical analysis, hardness scale conversions, test force, dwell time, and measurement count. The same information can also be displayed on a connected PC or laptop using the supplied software.
