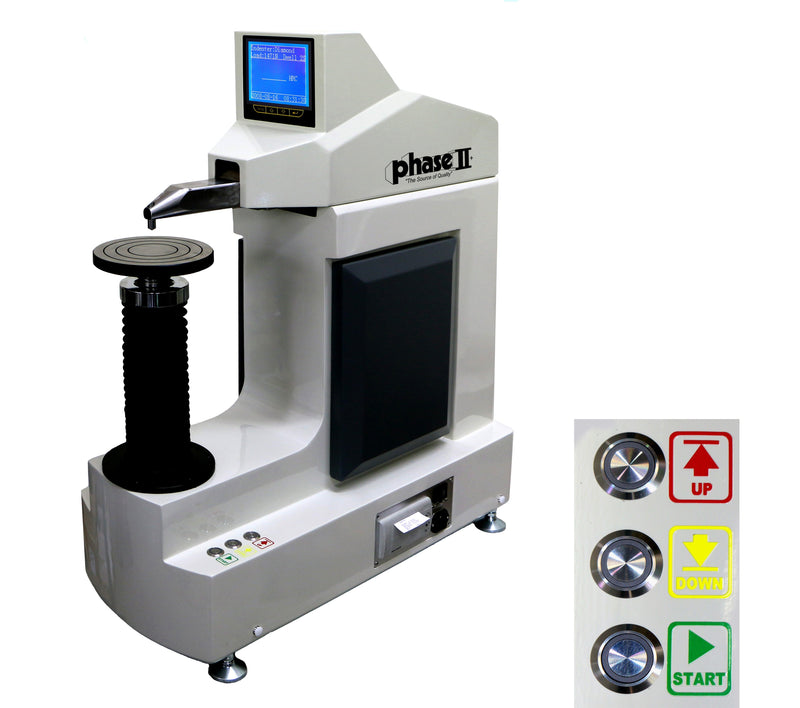

Fully Automatic Rockwell Hardness Tester Phase II Model 900-388
MORE VIEWS
Fully Automatic Rockwell Hardness Tester Phase II Model 900-388
Regular price
$0.10
$0.10
Features:
- The test force is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit replace traditional dead weights. The result is highly accurate hardness test measurements at all test loads up to 0.5%
- Simple plug - and - play tech allows for much more quick and easy installation than traditional dead weight type machines
- Automated Z-Axis. Just press START key once, entire test process will be finished automatically regardless of the size of the sample, the position of the sample, or the distance between the indenter and sample surface. The sample will be auto-lifted to approach the indenter and finish hardness testing automatically
- Higher precision than handle wheel lifting/dead weight type machines which can be affected by user interaction
- Extended dolphin nose allows vertical hardness test height of 11.8” and throat depth of 8.6”
- Load Cell
- Twin hardness tester --Regular Rockwell & Superficial Rockwell hardness for metal and plastic material
- Horizontal dolphin nose Indenter is suitable also for internal and external hardness testing
- Rockwell Hardness Testing on Surfaces difficult to reach. Hardness Testing internal surface of rings and tubes
- Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales
- The Rockwell hardness tester is suitable for testing of carbon steel, alloy steel, cast iron, non-ferrous metal
- Automatic testing cycle: Lifting of part, pre-loading, loading, dwell, unloading, results will be finished automatically
- Measuring results digitally displayed and can be printed with its built-in thermal Mini-Printer
- Test HR value can be converted to the value of HB, HV, HK and σb value
- The tester meets the following standards: ISO 6508-2, ASTM E18
Call for Quote
We will beat any advertised price
Download PDF
Digital Rockwell/Superficial Hardness Testers
Phase II hardness testers are renowned for their precision, design and ease of use. The 900-388 fully automatic Rockwell Digital Hardness Tester combines ease of use with reliable precision and accuracy. Although it is a precision instrument, the Phase II 900-388 stands up to almost any challenging environment without any loss of performance quality. This hardness tester can be used in laboratories, machine shops, heat treatment facilities, inspection labs, tool rooms, etc. Provided free of charge is lifetime technical support that comes standard with every Phase II 900-388 Digital Rockwell Hardness Tester. Use it with confidence, trusting the accuracy you can expect from a Phase II hardness tester.
Accessories:
|
Standard hardness block for B scale |
1 |
|
Standard hardness block for C scale |
2 |
|
Standard hardness block for N scale |
2 |
|
Standard hardness block for T scale |
1 |
|
ball indenter (1/16″) |
1 |
|
120°cone diamond indenter |
1 |
|
Mounting screws for indenter |
2 |
|
Flat anvil |
1 |
|
“V ”shape anvil |
1 |
|
Power supply cord |
1 |
|
Screwdriver for indenter mounting |
1 |
|
Dust cover |
1 |
Specifications:
- Preload：4N（3kgf）, 98.1N (10kgf)
- Total test force：1N(15kgf), 294.3N(30kgf), 441.3N(45kgf),
588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf) - Scales： HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
HRA，HRB，HRC，HRD，HRE，HRF, HRG，HRH，HRK，HRL，HRM，HRP, HRR， HRS，HRV - Load dwell duration： 2～50s, can be set and stored
- Resolution ：1HR
- Display： High definition backlight LCD
- Operation： Menu selectable, Membrane keypad
- Upper/lower limits setting & alarming
- Data statistics：, Max., Min., S, R
- Curved surface auto correction
- Memory: 400 items of test results stored automatically
- Testing Capacity： 300mm (vertical) , 220mm (horizontal)
- Dimensions： 690mm×280mm×860mm
- Power supply： AC, 220V/110V, 50～60Hz, 4A (convertible)
- Net weight： 86 kg (190lbs)
- Gross weight: 120kg (265 lbs)
|
Scale Symbol |
Indentor Type |
Preliminary Force N (kgf) |
Total Force N(kgf) |
Typical Applications |
|
A |
Spheroconical Diamond |
98.07 (10) |
588.4 (60) |
Cemented carbides, thin steel, and shallow case hardened steel |
|
B |
1/16” Carbide Ball |
98.07 (10) |
980.7 (100) |
Copper alloys, soft steels, aluminum alloys, malleable iron, etc. |
|
C |
Spheroconical Diamond |
98.07 (10) |
1471 (150) |
Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, other harder than HRB 100 |
|
D |
Spheroconical Diamond |
98.07 (10) |
980.7 (100) |
Thin steel and medium case hardened steel, and pearlitic malleable iron |
|
E |
1/8” Carbide Ball |
98.07 (10) |
980.7 (100) |
Cast Iron, Aluminum and magnesium alloys, and bearing metals |
|
F |
1/16” Carbide Ball |
98.07 (10) |
588.4 (60) |
Annealed copper alloys and thin soft sheet metals |
|
G |
1/16” Carbide Ball |
98.07 (10) |
1471 (150) |
Malleable irons, copper-nickel-zinc and cupro-nickel alloys |
|
H |
1/8” Carbide Ball |
98.07 (10) |
588.4 (60) |
Aluminum, zinc and lead |
|
K |
1/8” Carbide Ball |
98.07 (10) |
588.4 (60) |
|
