Hardness Testing

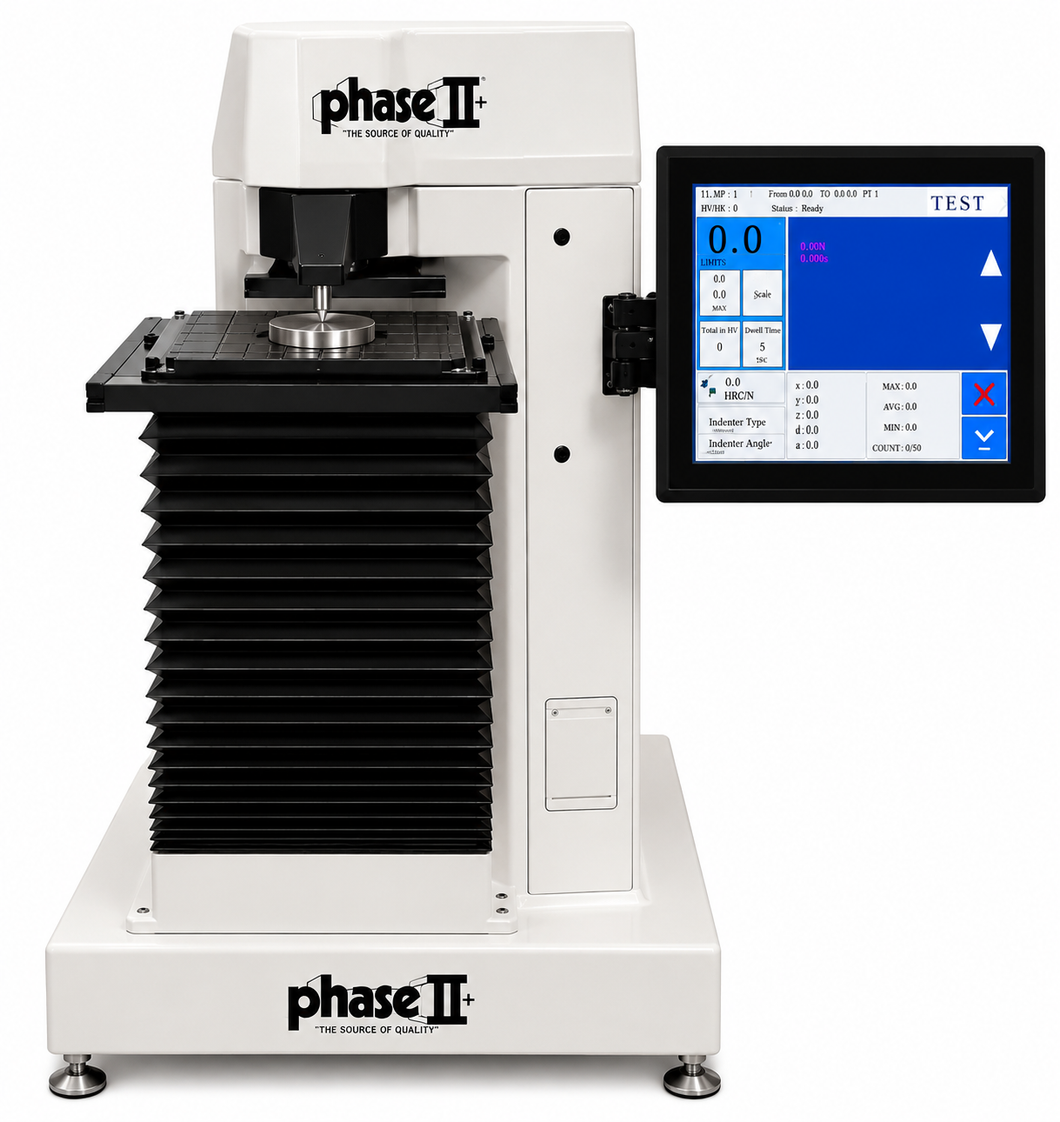

Fully Automated Rockwell Superficial Hardness Tester Phase II Model 900-389

Phase II Fully Automated Rockwell Superficial Hardness Tester Model 900-389

Fully Automated Rockwell Superficial Hardness Tester Phase II Model 900-389

Regular price $0.01 Sale

Key Features

Performs both Regular Rockwell and Superficial Rockwell hardness testing
Fully automatic Auto Z-Axis operation
Closed-loop load cell force application
Motorized loading and unloading
Microcomputer-controlled touch screen
High-definition LCD display
USB output
Programmable dwell times
Automatic hardness conversions
Statistical functions
Test counter
Upper and lower tolerance limits
High-speed testing cycle
Manufactured utilizing ASTM E18 guidelines

Overview

The Phase II Model 900-389 Fully Automatic Twin Rockwell / Superficial Rockwell Hardness Tester is a fully automated hardness testing system designed to perform both Regular Rockwell and Superficial Rockwell hardness testing on a single instrument. The tester incorporates an Auto Z-Axis that automatically raises and lowers the worktable during the testing cycle, minimizing operator involvement and improving testing consistency.

Unlike conventional dead-weight hardness testers, the Model 900-389 utilizes a closed-loop load cell system with motorized force application. A microcomputer-controlled touch screen, automatic loading and unloading, programmable dwell times, USB output, statistical analysis, and automatic hardness conversions make this instrument well suited for quality control laboratories, production environments, and research facilities. Phase II states the Model 900-389 is manufactured utilizing the guidelines of ASTM E18.

Applications

The Model 900-389 is designed for testing:

Heat-treated steels
Tool steels
Stainless steels
Thin materials
Surface-hardened components
Cast iron
Aluminum alloys
Copper alloys
Brass
Precision machined parts
Production components
Incoming material inspection

Industries Served

Aerospace
Automotive
Medical Device Manufacturing
Heat Treating
Precision Machining
Tool & Die
Metal Fabrication
Research Laboratories
Quality Assurance Laboratories
Production Manufacturing

Included Accessories

C/N diamond indenter
1/16 in. ball indenter
Three HRC hardness test blocks
One HRB hardness test block
One HRN hardness test block
One HRT hardness test block
Accessory case
Dust cover

Optional Accessories

Available accessories include:

Certified Rockwell hardness test blocks
Certified Superficial Rockwell hardness test blocks
Replacement diamond indenters
Replacement ball indenters
Additional anvils
Calibration accessories

Calibration & Verification

The Model 900-389 should be routinely verified using certified Rockwell and Superficial Rockwell hardness test blocks appropriate for the hardness scales in use. Regular inspection of the load cell system, indenters, anvils, and automatic Z-axis mechanism helps ensure continued measurement accuracy.

WESTport provides:

Certified hardness test blocks
Replacement indenters
Calibration and verification services
Repair services
Technical application support

Why Buy from WESTport-

WESTport offers complete hardness testing support, including:

Certified hardness test blocks
Replacement indenters and anvils
Calibration and repair services
Technical application assistance
Product support before and after the sale
Long-term customer service

Frequently Asked Questions

What is the Auto Z-Axis feature-

The Auto Z-Axis automatically raises the worktable into position for testing and lowers it after the test cycle is complete, reducing operator effort and improving consistency.
