TOOL-A-THON SPECIAL - Fowler Standard Micrometers - 1 - 2 Inch - Inch - .001 Inch - Disc

TOOL-A-THON SPECIAL - Fowler Standard Micrometers - 1 - 2 Inch - Inch - .001 Inch - Disc

TOOL-A-THON SPECIAL - Fowler Standard Micrometers - 1 - 2 Inch - Inch - .001 Inch - Disc

Regular price $167.00 $145.00 Sale

Inch Disc Micrometer
Part#52-250-112-1
size 1---2-Inch
MeasureInch
gradiation .001-Inch
typeMicrometer Disc
Email Express Quote

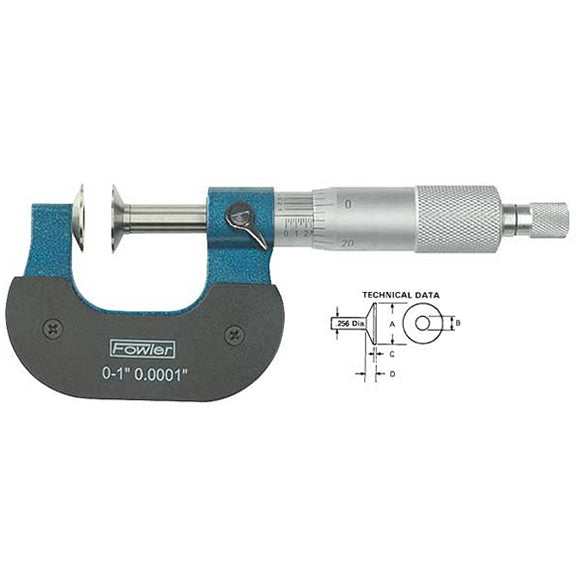

Fowler Disc Micrometers simplify measuring thickness of difficult, closely spaced sections, ribs, keys, fins, cutting edges on forming tools, chordal thickness of gear teeth and more. The extra large diameter disc will enter normally inaccessible places such as narrow grooves, slots and recesses.

Features:

  • Dim.-œA-: .787", Dim.-œB-:.315", Dim."C":.039", Dim."D":.250"
  • Hammertone blue baked enamel frame is tapered for hard-to-get-at places.
  • Anvil and spindle are hardened and precision ground with microlap finish on measuring faces.
  • Positive lever locking clamp.
  • Quick and easy zero adjustment on sleeve
  • Ratchet thimble for repeatability
  • Flatness: .00004"
  • Accuracy and parallelism: 1" & 2": .00016"; 3" & 4": .00024".
  • Meets or exceeds Federal accuracy specs.
  • Includes fitted case.

part52-250-112-1
size 1---2-Inch
MeasureInch
gradiation .001-Inch
typeMicrometer Disc
