Fowler Standard Micrometers - 0 - 1 Inch - Inch - .0001 Inch - Deep Throat

Fowler Standard Micrometers - 0 - 1 Inch - Inch - .0001 Inch - Deep Throat

Fowler Standard Micrometers - 0 - 1 Inch - Inch - .0001 Inch - Deep Throat

Regular price $140.00 $126.00 Sale

Deep Throat Micrometer
Part#52-517-611-1
size 0---1-Inch
MeasureInch
gradiation .0001-Inch
typeMicrometer Deep Throat
Email Express Quote

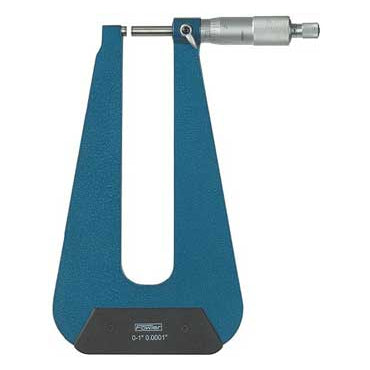

Fowler's "U"-frame Deep Throat Micrometers are available with depths of 6" and 12". Use Deep Throat Micrometers for taking accurate measurements of steel and plastic sheets and plates whenever a depth measurement of 2" to 12" is needed.

Features:

  • Hammertone blue baked enamel frame.
  • Graduations are microfine on satin chrome finish for easy reading.
  • All models feature a ratchet stop thimble for exact and repetitive readings.
  • The spindle thread is hardened, ground and lapped. The anvil and spindle are hardened and precision ground with microlap finish on carbide tipped measuring faces.
  • Diameter of measuring faces = .256".
  • Positive lever locking clamp ensures reliable measure- ment at all times.
  • Wrench furnished with each micrometer for fast, easy zero adjustment on the sleeve.
  • Accuracy: .0001"
  • Flatness: .00003"
  • Parallelism: .00005"
  • Meets or exceeds Federal accuracy specs.
  • Includes a fitted case.

part52-517-611-1
size 0---1-Inch
MeasureInch
gradiation .0001-Inch
typeMicrometer Deep Throat
