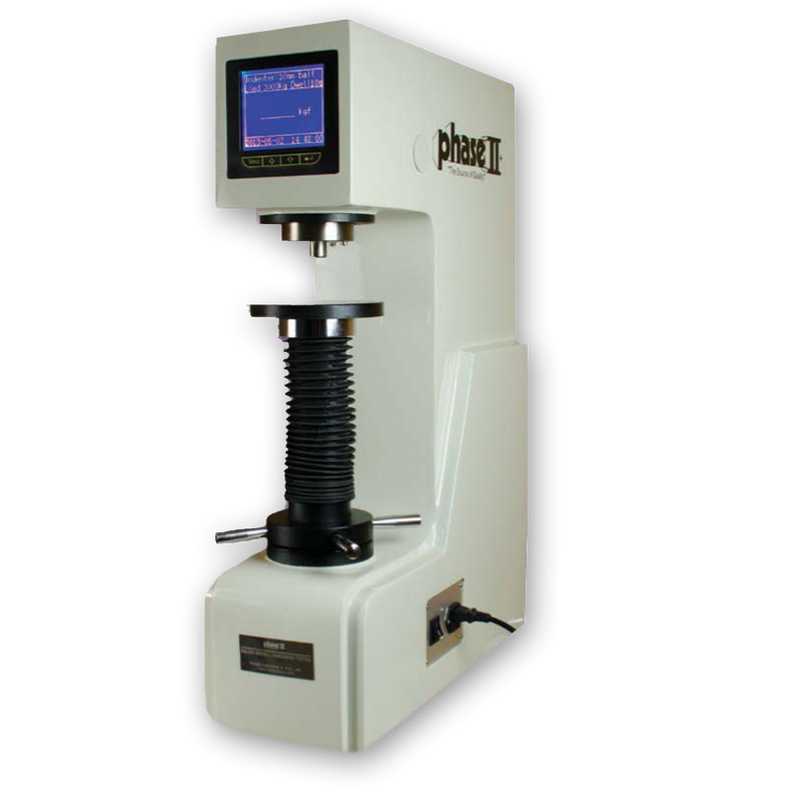

Digital Brinell Hardness Tester Phase II - Model 900-355

Digital Brinell Hardness Tester Phase II - Model 900-355


Digital Brinell Hardness Tester Phase II - Model 900-355

Regular price $0.10 $0.10 Sale

5 Year Warranty


  • Easy to Operate
  • Load Cell Driven System
  • Closed Loop Technology
  • Large LCD Display
  • Great for Laboratories, Inspection Labs, Tool rooms, etc.
  • C-Scale Diamond Indenter, Hardness Test Blocks and Anvils Included
  • Accessory Case and Dust Cover Included
  • Lifetime Technical Support
  • 5 Year Warranty

Call For Quote - We will beat any advertised price
Download PDF Download

This hardness tester uses an advanced closed-loop technology. Moreover it also features new state of the art load cell technology. Using a DC motor, closed-loop control unit with load cell, and a digital measurement and control unit, the Brinell Hardness Tester applies the test load and measures the results. Very precise Brinell hardness measurements are achieved for test loads up to 0.5%. Automatic test cycles reduce operator error and ensures consistency of results. The closed-loop technology effectively eliminates the challenges of conventional open-loop systems using dead weight, like overshoot or undershoot. Less friction from the lack of mechanical weights helps reduce wear and maintain precise accurate readings. This also reduces vibration and misalignment. Its light weight and clear digital screen make this tester easy to operate and great for laboratories, work shops or any work area that is needed to do Brinell testing.


  • NIST/ASTM certified test blocks,penetrators and kits are available.

Hardness Range Chart

Hardness Range(HBW) Error (%) Repeatability(%)
≤ 125 ± 3.0 ≤ 3.0
125< HBW ≤ 225 ± 2.5 ≤ 2.5
> 225 ± 2.0 ≤ 2.0


Loads F3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),500Kgf (4900N), 250Kgf(2452N), 187.5Kgf (1839N), 125Kgf (1226N),100Kgf (980N), 62.5Kgf(612.9N)
Load dwell duration 2s-99s, can be set and stored
Tungsten Carbide Ball indenter 10mm, 5mm, 2.5mm
Test Force Control Hydraulic Dashpot System
Measuring range 8HBW-650HBW
Magnification of the microscope 20X
Resolution capability of the microscope 0.005mm
Max measurable height 230 mm
Max measurable depth 140 mm
Dimensions 530mm x 260mm x 750mm
Power supply 220/110 V, 50/60 Hz, 4A
Weight 224lbs.
