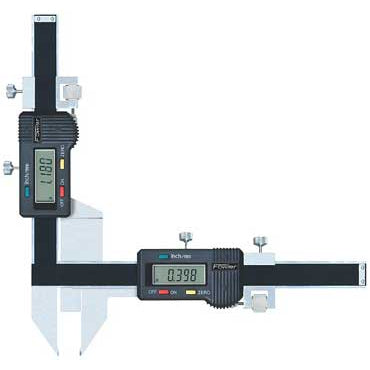

The Gear Tooth Caliper is used for the testing of gear teeth. The vertical scale measures the depth of teeth from the top to the pitch line, and the horizontal scale measures the thickness of teeth in the pitch line.
The Gear Tooth Caliper provides an LCD readout, true inch/metric conversion, floating zero and complete portability.
- Tooth thickness range (horizontal scale) is 0-1.56" (39.6mm)
- Chordal thickness range (vertical scale) is 0-1.44" (36.7mm)
- Resolution: .0005" (.01mm)
- Includes a fitted case and batteries.
